Multisec Traditional Steel 3 Column Stocked Radiator | Anthracite | MHS

Multisec Traditional Steel Column Stocked Radiator | Anthracite | MHS

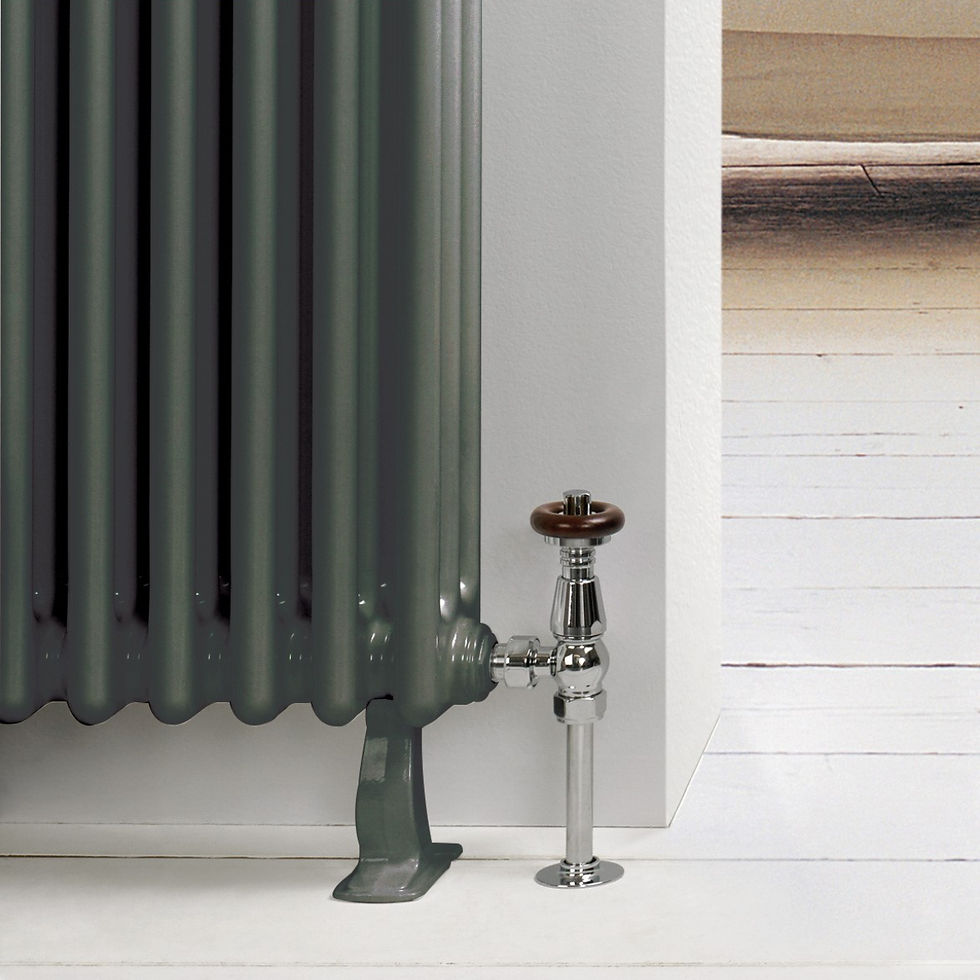

MHS's Multisec Traditional Steel Column Stocked Radiator adds function & elegance to any room. It is finished in an Anthracite finish as standard and is available in 3 heights, 500mm, 600mm, and 1800mm. Each radiator is supplied with wall brackets and an air vent. Available in 2, 3 & 4 Column set stocked lengths.

Can't find the right size? Bespoke models with custom widths and more heights are also available here...

Made in Italy from 25mm diameter, 1.2mm steel with 1.5mm headers
Supplied with wall brackets.
Slip-on feet and towel bar are optional extras
Suitable for ½" BSP valves.
5-year manufacturer warranty.
3-5 working day delivery.*

* Delivery Times are subject to change, please get in touch for more accurate lead times. Radiators are delivered kerbside on a pallet.

The Multisec range of steel radiators come with wall brackets included. These are used to fix the radiator to a wall. The radiators can also be made freestanding using either Slip-on feet or Cast feet.

These feet are designed to bear the weight of the radiator and so must be used in conjunction with a top retaining stay or other suitable wall fixing to ensure the radiator remains upright

Height	500mm		Depth	66mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
13/ 622mm	1778	521	906	266
17 / 806 mm	2327	521	1187	348
21/ 990mm	2873	842	1465	429
26 / 1220mm	3559	1043	1815	532

Height	600mm		Depth	66mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
13/ 622mm	2088	612	1065	312
17 / 806 mm	2733	801	1394	409
21/ 990mm	3374	989	1721	504
26 / 1220mm	4180	1225	2132	625


Height	1800mm		Depth	66mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
6 / 300mm	2747	805	1492	437
8 / 392mm	3661	1073	1988	583
11 / 530mm	5033	1475	2733	801

Height	500mm		Depth	107mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
6 / 300mm	1129	331	613	180
10 / 484mm	1883	552	1022	300
13 / 622mm	2450	718	1330	390
17 / 806mm	3200	938	1738	509
21 / 990mm	3955	1159	2148	629
26 / 1220mm	4896	1435	2659	779
30 / 1404mm	5650	1656	3068	899

Height	600mm		Depth	107mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
6 / 300mm	1334	391	724	212
10 / 484mm	2225	652	1208	354
13 / 622mm	2893	848	1571	460
17 / 806mm	3780	1108	2053	602
21 / 990mm	4671	1369	2536	743
26 / 1220mm	5783	1695	3140	920
30 / 1404mm	6674	1956	3624	1062

Height	1800mm		Depth	107mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
6 / 300mm	3688	1081	2003	587
8 / 392mm	4920	1442	2672	783
11 / 530mm	6763	1982	3672	1076

**Heat outputs are measured at ∆T 50˚C for newer boilers and shown at ∆T 30˚C, suitable for most heat pumps.

Height	500mm		Depth	148mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
13 / 622mm	3211	941	1744	511
17 / 806mm	4200	1231	2281	668
21 / 990mm	5186	1520	2816	825
26 / 1220	6421	1882	3487	1022

Height	600mm		Depth	148mm
Sections / Length	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
13 / 622mm	3757	1101	2040	598
17 / 806mm	4913	1440	2668	782
21 / 990mm	6070	1779	3296	966
26 / 1220mm	7513	2202	4080	1196

**Heat outputs are measured at ∆T 50˚C for newer boilers and shown at ∆T 30˚C, suitable for most heat pumps.

We offer a comprehensive range of accessories to complete your radiator. All radiators come complete with matching wall brackets & a chrome bleed valve. You will require a Valve & Lockshield set & Pipe Shrouds (covers) will finish the look. You can also purchase a bleed valve to match your valve set if you do not want the chrome one.

Click here to view our range or give us a call to discuss your requirements or for a bit of advice.
Delivered in around 3-5 working days. Contact us for up-to-date lead times.

Free Delivery to most UK addresses, there is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by MHS's transport department that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
