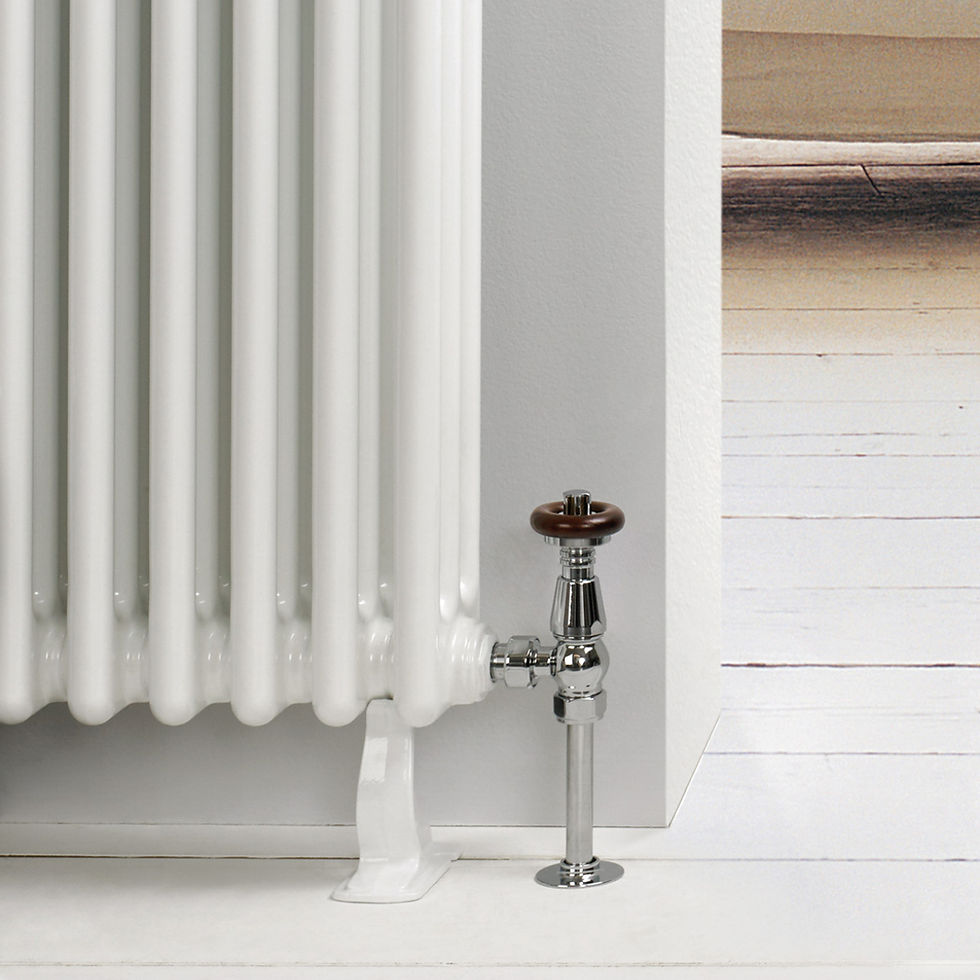

Multisec Bespoke Steel 4 Column Radiator | MHS

MHS's Multisec Bespoke Steel 4 Column Radiator range is made to order. Available in a full range of finishes, with depths from two to six columns and a range of 24 heights from 207mm to 2500mm. The number of sections and lengths are tailored to meet your unique requirements. Wall-mounted and floor-standing models are available, with the latter boasting welded fixed feet.

Please either add your requirements to your basket & check out, call or email us for a quote.

Made in Italy
Supplied with wall brackets.
Suitable for ½" BSP valves.
5-year manufacturer warranty.
5-6 week delivery.*
Welded feet & towel bar are optional extras

*Delivery times are subject to change, so please get in touch for more accurate lead times

The Multisec Stocked models have a 3-5 day delivery time & there is no difference in price. View the stocked models here...

The Multisec range are supplied with wall brackets for mounting but can also be configured to be floor-standing. Optional Cast and Welded feet are available for an extra charge (See images above).

Heat outputs are measured at ∆T 50˚C for newer boilers and shown at ∆T 30˚C, suitable for most heat pumps.

To Calculate radiator length, multiply the number of sections by the width of the section and add 24 (to account for the radiators end caps)

Per Section:

Section Depth	148mm		Section Width	46mm
Height (mm)	BTU Output ∆T 50˚C	Watts ∆T 50˚C	BTU Output ∆T 30˚C	Watts ∆T 30˚C
207	109.2	32.0	56.2	16.5
300	159.7	46.8	82.2	24.1
400	204.0	59.8	105.1	30.8
500	247.0	72.4	127.2	37.3
556	270.6	79.3	139.3	40.8
586	283.2	83.0	145.8	42.7
600	289.0	84.7	148.8	43.6
626	299.9	87.9	154.5	45.3
656	312.5	91.6	161.0	47.2
676	320.7	94.0	165.2	48.4
750	351.1	102.9	180.8	53.0
786	365.8	107.2	188.4	55.2
856	394.4	115.6	203.1	59.5
900	412.2	120.8	212.3	62.2
1000	452.8	132.7	233.2	68.3
1200	533.0	156.2	274.5	80.4
1500	653.1	191.4	336.3	98.6
1656	715.5	209.7	368.5	108.0
1800	773.2	226.6	398.2	116.7
1856	796.0	233.3	410.0	120.1
2000	854.0	250.3	439.8	128.9
2056	876.5	256.9	451.4	132.3
2200	935.2	274.1	481.6	141.2
2500	1058.4	310.2	545.1	159.8

We offer a comprehensive range of accessories to complete your radiator. All radiators come complete with matching wall brackets & a chrome bleed valve. You will require a Valve & Lockshield set & Pipe Shrouds (covers) will finish the look. You can also purchase a bleed valve to match your valve set if you do not want the chrome one.

Click here to view our range or give us a call to discuss your requirements or for a bit of advice.
Delivered in around 5-6 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses, there is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by MHS's transport department that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
