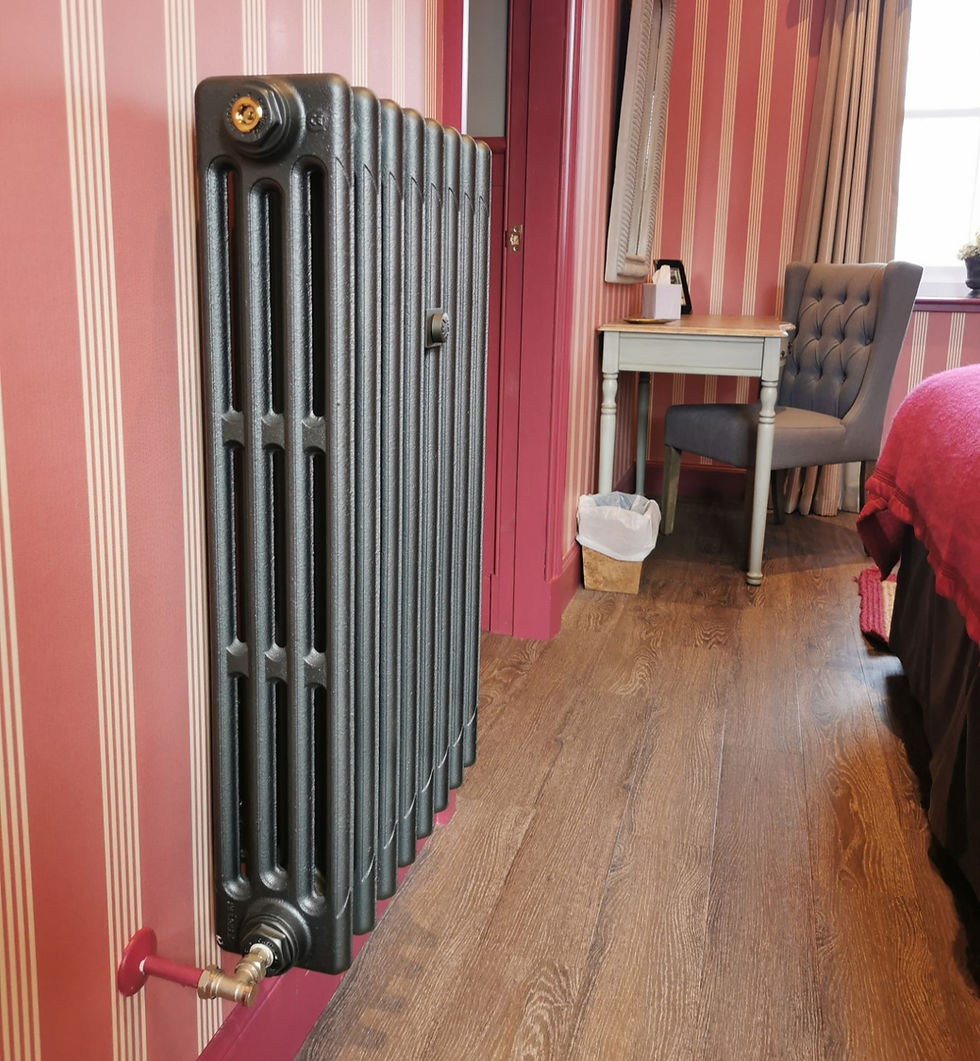

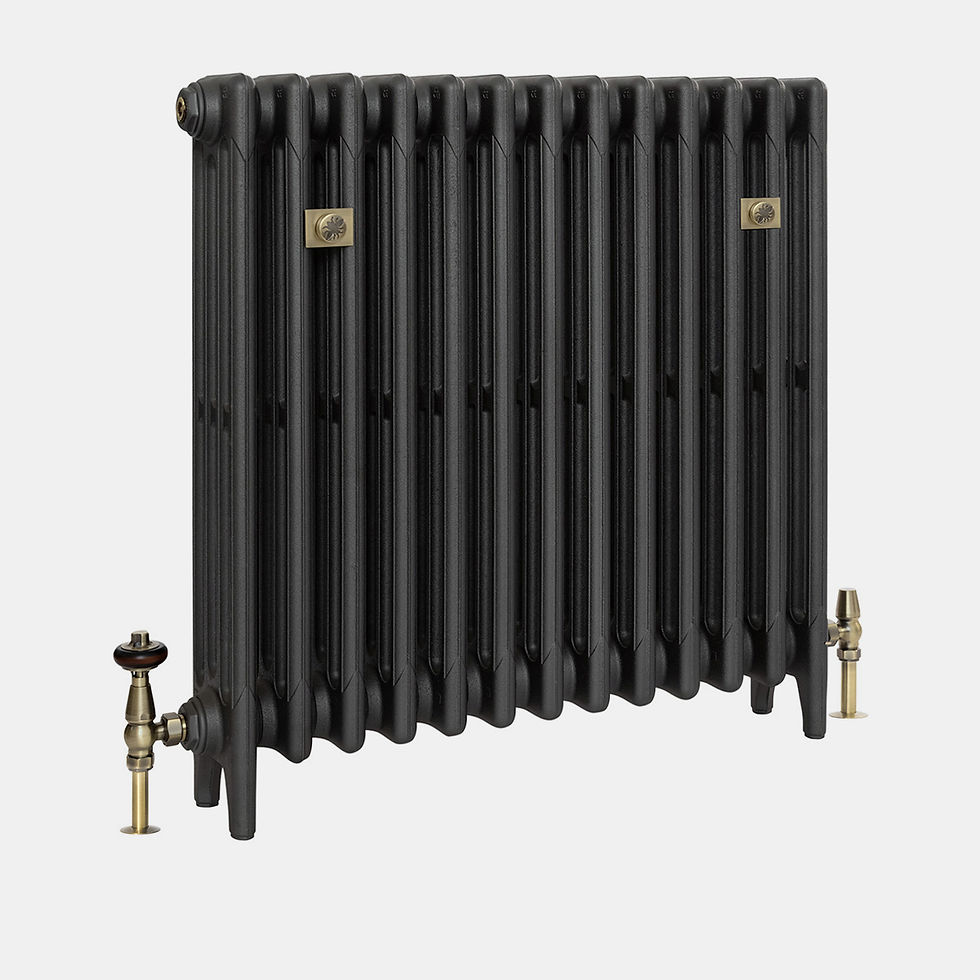

Mercury 4 Column Cast Iron Radiator | Castrads

Name: Mercury 4 Column Cast Iron Radiator | Castrads
Brand: Castrads

The Mercury 4 Column Cast Iron Radiator by Castrads has crisp linear features paired with perfectly blended curves. Available in 6 Heights. The Mercury is an exclusive new 21st Century design, slimmer than traditional Victorian castings, can be styled traditionally and brings character to a modern space. The 360mm, 460mm and 560mm heights are cast in the UK.

The Mercury is available in 6 different heights and 4 depths, it's simpler to find the perfect radiator for your space.

Delivered fully assembled up to 18 sections for most heights, with the 860mm up to 15 sections & the 960mm up to 13 sections - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	360mm	460mm	560mm	760mm	860mm	960mm
Single Section Width	58mm	58mm	58mm	58mm	58mm	58mm
Single Section Depth	140mm	140mm	140mm	140mm	140mm	140mm
BTU ∆T 50˚C	148	198	242	326	372	417
Watts ∆T 50˚C	43	58	70	95	109	122

Other Heat Outputs

	360mm	460mm	560mm	760mm	860mm	960mm
BTU ∆T 60˚C	190	253	310	418	476	534
Watts ∆T 60˚C	55	74	90	122	139	157
BTU ∆T 30˚C	80	107	131	177	201	215
Watts ∆T 30˚C	23	31	38	51	58	63

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

Castrads offer an unrivalled range of finishes including their exclusive 'Painted' Signature Range and their hand-crafted 'Polished' Bare Metal Range.

Alternatively, they can also offer any 'Painted' RAL colour or Designer finishes from Farrow & Ball, Little Greene & Benjamin Moore.

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in Castrads' Manchester, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-up paint may be supplied upon request.
Delivered in around 6-8 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
