Clasico 4 Column Cast Iron Radiator | MHS

Name: Clasico 4 Column Cast Iron Radiator | MHS
Brand: MHS

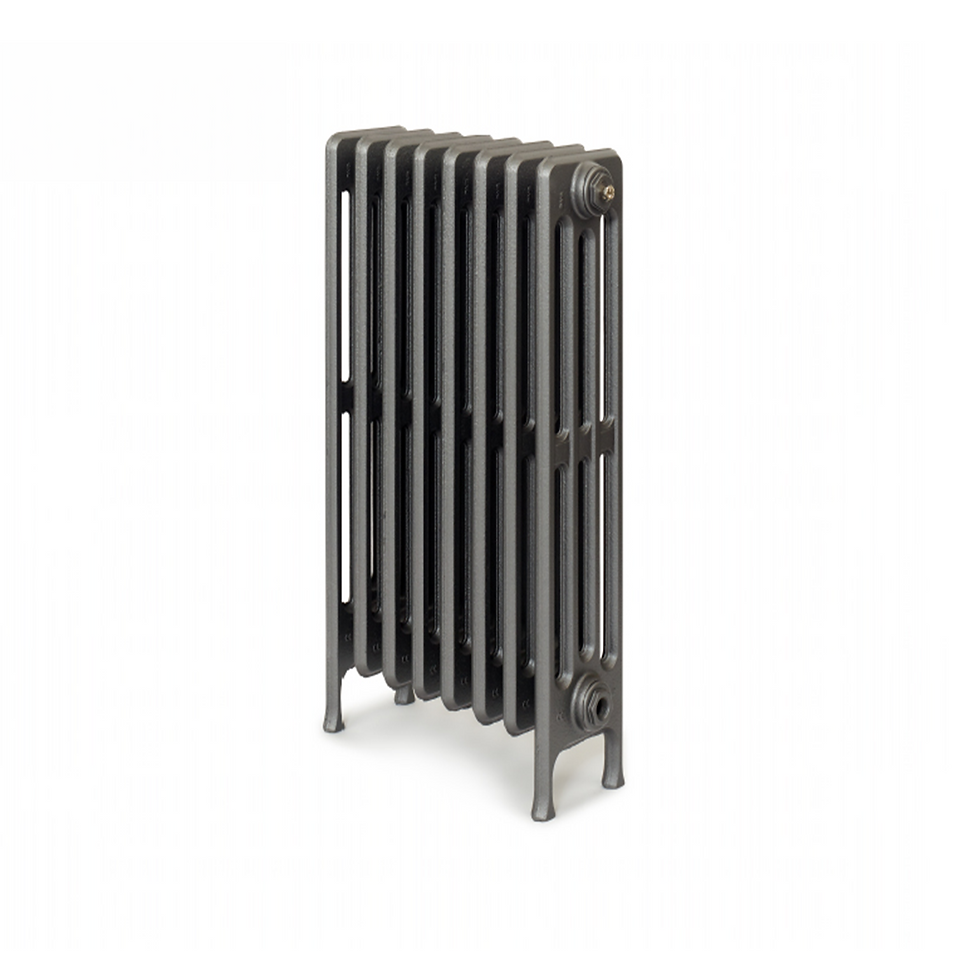

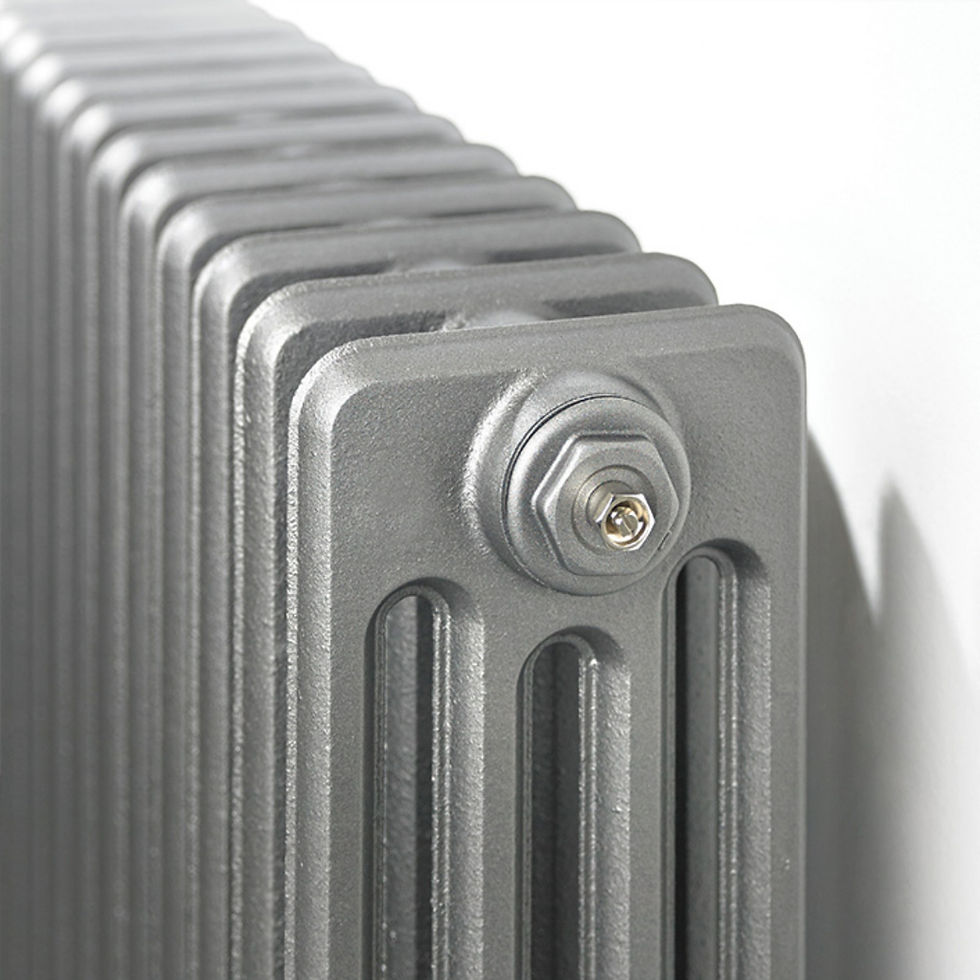

The Clasico 4 Column Cast Iron Radiator from MHS, previously known as the Storrington cast iron radiator combines high quality cast iron elegance with a sleek modern design, offering a huge array of possibilities for both traditional and modern styles of décor.

Delivered fully assembled up to 20 sections, or 17 section for the 935 high model - see 'Longer Lengths' section below.

Radiator Sizes and Outputs (Per Section)

Single Section Height	353mm	485mm	636mm	785mm	935mm
Single Section Width	50mm	50mm	50mm	55mm	55mm
Single Section Depth	140mm	140mm	140mm	140mm	140mm
BTU ∆T 50˚C	139	198	257	335	397
Watts ∆T 50˚C	40	58	75	98	116

Other Heat Outputs

	353mm	485mm	636mm	785mm	935mm
BTU ∆T 60˚C	178	253	329	429	508
Watts ∆T 60˚C	52	74	96	125	148
BTU ∆T 30˚C	91	108	140	182	216
Watts ∆T 30˚C	22	31	40	53	62

DELTA ∆T 30˚C Best used For Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

**The 353mm 485mm and 636mm Heights are 5mm shorter per section, please take this into account when using our estimated lengths.

All MHS's cast iron radiators can be supplied in a 'Raw' finish, with a basic primer applied in the factory, and will require a fresh coat of primer before it can be overpainted.

Why not let MHS's expert painters finish your look with one of their 'Painted' classic finishes. Alternatively, you can choose one of their 'Specialised' Special Effect finishes to give you a classic, modern or contemporary look.

If there is a specific RAL that isn't on MHS colour chart or a colour match to a branded paint that you would like, contact us for a quote.

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in MHS's Essex, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-Up paint is supplied free of charge as standard to cover the new gasket when joining.
Delivered in around 3-4 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
